Forging Technology
H143
Process: Monoblock Forged
Load: Single hub load of 750KG
The actual load is set according to the model
Material: 6061-T6 aluminum alloy
Standard: JWL, VIA, Dot-T
Quick Details Higher Test Standards Better Dynamic Balance Higher Load |
Place of Origin | Guangdong, China | Brand Name | HTian |
| PCD | 127mm, 139.7mm, 165.1mm, 120.65mm, 143.1mm, customize | ET | 10mm, 15mm, 18mm, 20mm, 30mm, 25mm, 0mm, customize |
| Warranty | 2 years | Material | T6-6061alloy aluminum |
Finishing | Machining/Polish/Brushin | Width | 8/8.5/9/9.5 |

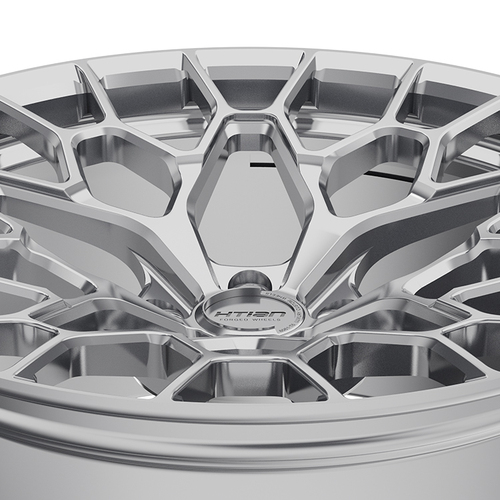

Design | Multi Spoke | Model Number | H143 |

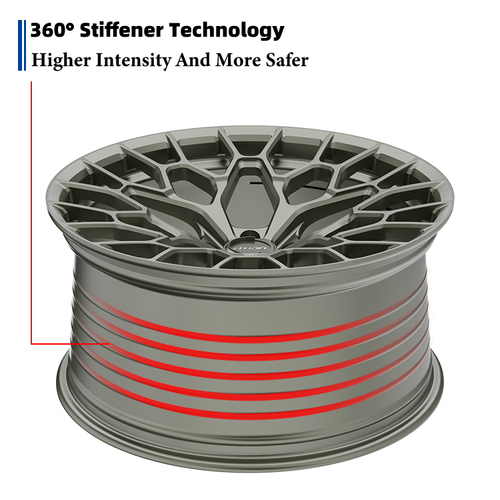

Product Name | Car rim 15inch | Patent | Ring stiffener and double crimping structure |
Color | 36 colors available | Package | Hard Carton |
| Size | 15-24 Inch | CB | Customize |
| Quality | High Performance | Application | Passanger Car/Luxury Racing/Trailer/Truck |
| Test | Impact/Cornering/Radial Fatigue Test | Lead Time | 25 Days |
HTian standard is a combination of years of HTian technical experience, the actual measurement of internal vehicles and the problems encountered by customers in actual use of different road conditions.
| Test | JWL | PCT | DOT | HTian |
| Cornering Fatigue | 100,000 Cycles | 100,000 Cycles | 100,000 Cycles | 150,000 Cycles |
| Radial Fatigue | 500,000 Cycles | 500,000 Cycles | 500,000 Cycles | 800,000 Cycles |
| Impact test 13° | 230 MM | 230 MM | 230 MM | 255 MM |
| Impact test 30° | / | / | / | 1000KG/255MM |
| Impact test 90° | / | / | / | 1000KG/160MM |
| Radial Impact test 90° | / | / | / | 1000KG/15MM+500,000 Cycles |
It avoid high-frequency swing and jump when driving at high speed, and avoid damage to the brake chassis.
| Size Forged Wheel | General Standard in Market | HTian Standard | ||
| A/g | E/g | A/g | E/g | |
| 18" | ≤20 | ≤45 | ≤10 | ≤20 |
| 19" | ≤20 | ≤45 | ≤15 | ≤30 |
| 20" | ≤35 | ≤65 | ≤20 | ≤30 |
| 21" | ≤35 | ≤65 | ≤20 | ≤35 |
| 22" | ≤35 | ≤75 | ≤30 | ≤35 |
The Load Strength is Increased by 140KG.
| Size | General Load | HTian Load |
| 18" | 690KG | 725KG |
| 19" | 690KG | 725KG |
| 20" | 690KG | 850KG |
| 21" | 715KG | 950KG |
| 22" | 750KG | 950KG |
Solid Coating Color
Brushed Transparent Color
Macaron color
 |
