Forging Technology

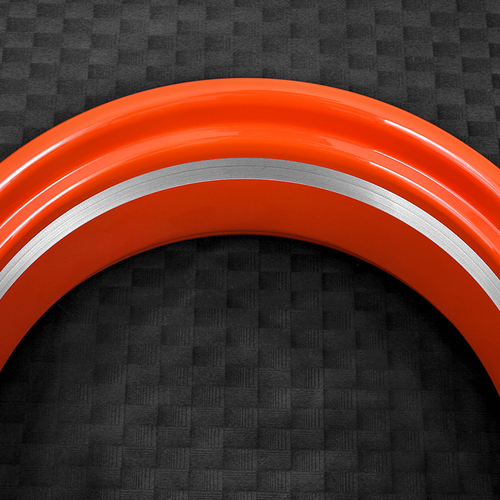

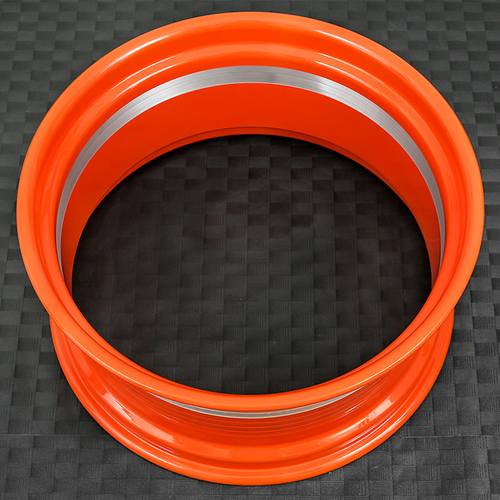

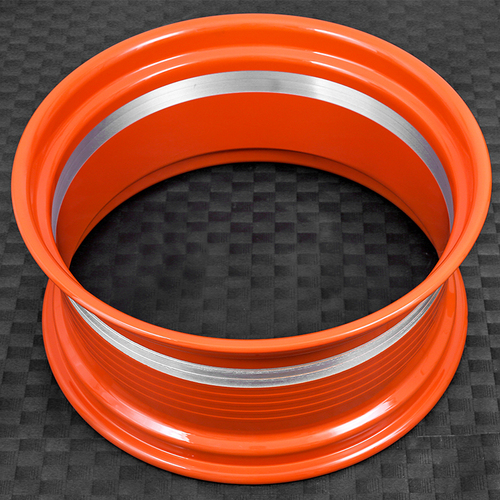

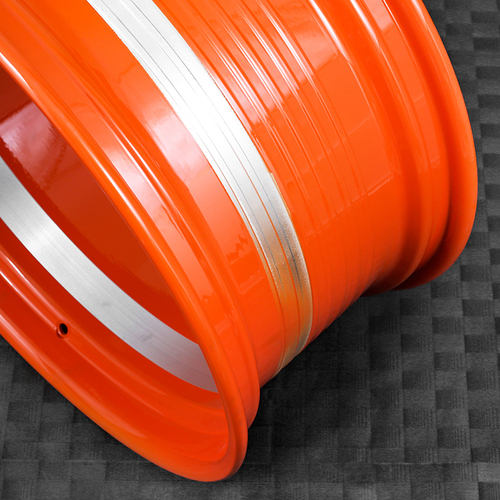

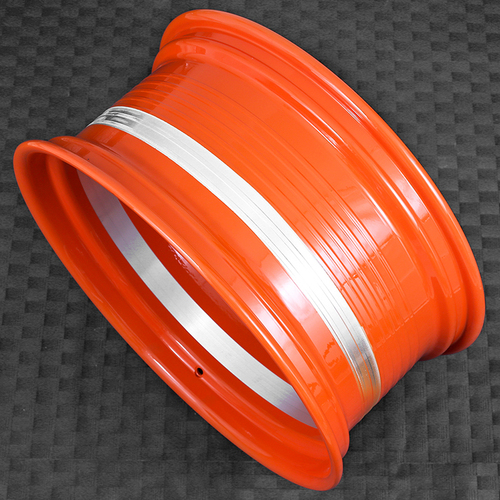

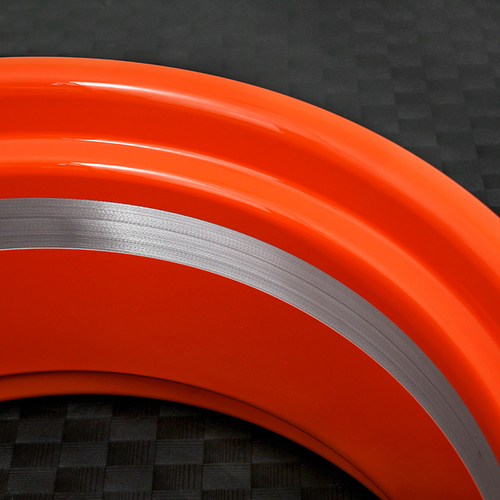

Wheel barrel
Size：18/19/20/21/22/23/24 inch
Width：8.5J/9.5J/10J/10.5J/11J/11.5J
Color：Customize
Material：T6-6061alloy aluminum
Package：Hard Carton
Quick Details Higher Test Standards Better Dynamic Balance Higher Load |
Place of Origin | Guangdong, China | Brand Name | HTian |
PCD | 130mm, 120mm, 108mm, 115mm, 112mm, 127mm, 100mm, 139.7mm, 98mm, 165.1mm, 114.3mm, 120.65mm, 143.1mm | ET | 10mm, 15mm, 18mm, 20mm, 50mm, 30mm, 35mm, 40mm, 42mm, 45mm, 25mm, 0mm |
Warranty | 1 year | Material | T6-6061alloy aluminum |
Finishing | Machining/Polish/Brushing/Customized | Width | 7J,7.5J,8J,8.5J,9J9.5J/10J/10.5J11J,11.5J,12J, Customized |
Design | Customized | Model Number | Wheel barrels |
| Certification | ISO/ITAF16949 | Quality control | 100% Inspection |
| Diameter | 18/19/20/21/22/23/24 inch | Inner Barrel | 7J/7.5J/8J/8.5J/9J/9.5J/10J/10.5J/11J/11.5J/12J |
Color | Matte Black/Silver/Bronze/Customized | Application | Passanger Car/Off-road Cars/Trucks |

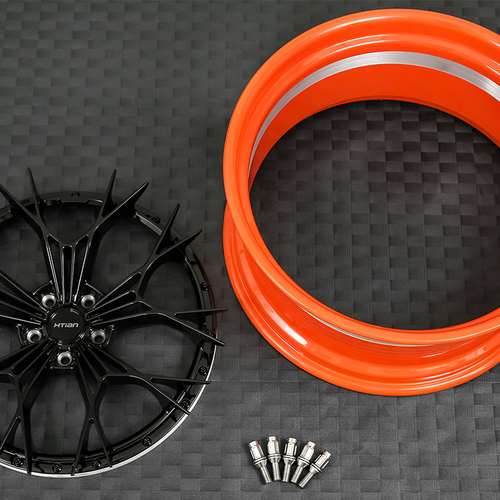

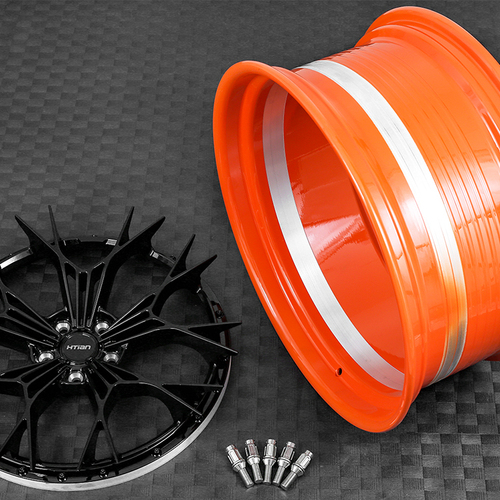

| Wheel Type | 2 Piece Forged Wheel | Test | Impact/Cornering Fatigue/Radial Fatigue |
HTian standard is a combination of years of HTian technical experience, the actual measurement of internal vehicles and the problems encountered by customers in actual use of different road conditions.
| Test | JWL | PCT | DOT | HTian |
| Cornering Fatigue | 100,000 Cycles | 100,000 Cycles | 100,000 Cycles | 150,000 Cycles |
| Radial Fatigue | 500,000 Cycles | 500,000 Cycles | 500,000 Cycles | 800,000 Cycles |
| Impact test 13° | 230 MM | 230 MM | 230 MM | 255 MM |
| Impact test 30° | / | / | / | 1000KG/255MM |
| Impact test 90° | / | / | / | 1000KG/160MM |
| Radial Impact test 90° | / | / | / | 1000KG/15MM+500,000 Cycles |
It avoid high-frequency swing and jump when driving at high speed, and avoid damage to the brake chassis.
| Size Forged Wheel | General Standard in Market | HTian Standard | ||
| A/g | E/g | A/g | E/g | |
| 18" | ≤20 | ≤45 | ≤10 | ≤20 |
| 19" | ≤20 | ≤45 | ≤15 | ≤30 |
| 20" | ≤35 | ≤65 | ≤20 | ≤30 |
| 21" | ≤35 | ≤65 | ≤20 | ≤35 |
| 22" | ≤35 | ≤75 | ≤30 | ≤35 |
The Load Strength is Increased by 140KG.
| Size | General Load | HTian Load |
| 18" | 690KG | 725KG |
| 19" | 690KG | 725KG |
| 20" | 690KG | 850KG |
| 21" | 715KG | 950KG |
| 22" | 750KG | 950KG |
Solid Coating Color
Brushed Transparent Color
Macaron color
 |
